Created: 5 Feb 2010

Last Updated: 22 Sep 2013

This document shows the various part numbers needed for the various wood, metal and stone trim options on the Mercedes SL (R230).

It was written because I was changing the trim in my SL and wanted to find the correct used trim.

There are only 3 wood trim pieces in the SL,  one on each door and the centre console.

There are 5 variants of the centre console: -  MY2002 (Launch) -> MY2004 (ie chassis nr 089503) - this is for cars with the older stereo where the wood goes all the way round the stereo. From MY2005 onward this wood trim stops just below the stereo.The SL63 is similar to MY2005 onward except the switch pack around the gearstick changed so the trim changes. There are (but not in all cases) a MY2009 onward version, although I am not clear as to what the exact changes are. And the SL Black series is again different, but this may just be because it has a AMG logo on the ashtray.

Japanese cars seem to have some different trim parts, so I suspect the shape of the audio system changed at a different point to the models in the rest of the world.

Just occsionally the trim for an option code changes around MY2007. I dont know whether the trim looks different, so be careful where there are 2 part numbers shown.

The pictures below have been collected from various eBay listings and other items for sale (including cars at my local dealer). They are not perfect, but should be taken as a guide.

If you are looking to find some used trim pieces for your vehicle, please see my Wood trim search on search4carparts.com.



Poplar trim. Option Code 729

Model Year Location Trim Part Number
All Left Door  A230 720 43 22 8N72
All Right Door  A230 720 44 22 8N72
MY02-04 Centre console  Not available
MY05 onward Centre console  A230 680 61 36 (MY09 onward)



Burled Walnut Root trim. Option code 731.

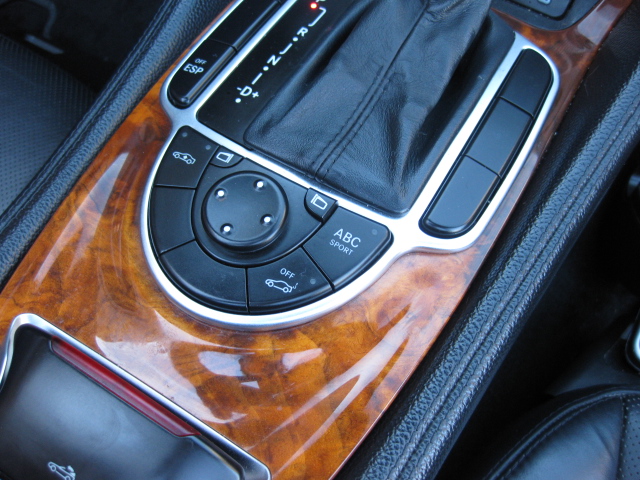

Mercedes SL R230 option 731 burled walnut trim picture

Model Year Location Trim Part Number
All Left Door  A230 720 01 22 8H32 (to end MY06)
All Right Door  A230 720 02 22 8H32 (to end MY06)
MY02-04 Centre console  A230 680 28 39
MY05-MY08 Centre console

 A230 680 00 36

MY09 onward Centre console  A230 680 42 36

 Note, SL63 with option 731 centre console is A230 680 19 07.

The picture above seems a bit light, it is much darker than the option 733 trim shown below.

It looks like this trim design changed at various points as A230 720 25 22 8J98 and A230 720 26 22 8J98 are also used from MY2007.

Chestnut Trim Option code 733.

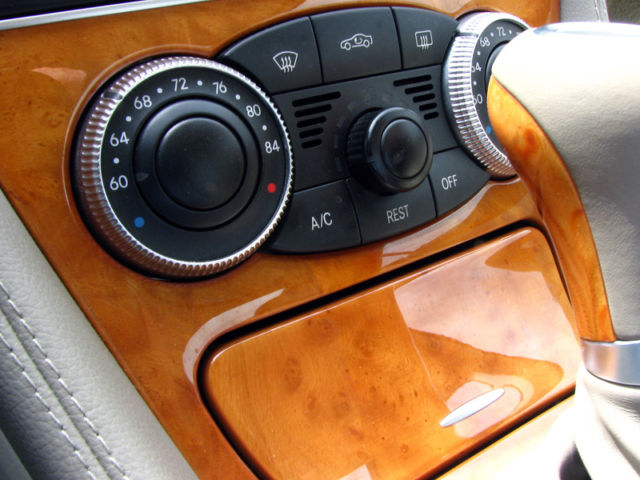

Mercedes SL R230 option 733 chestnut trim photo

Model Year Location Trim Part Number
All Left Door  A230 720 05 22 8G25
All Right Door  A230 720 06 22 8G25
MY02-04 Centre console  A230 680 30 39
MY05-MY08 Centre console  A230 680 01 36
MY09 onward Centre console  not available



Black Ash Trim. Option code 736

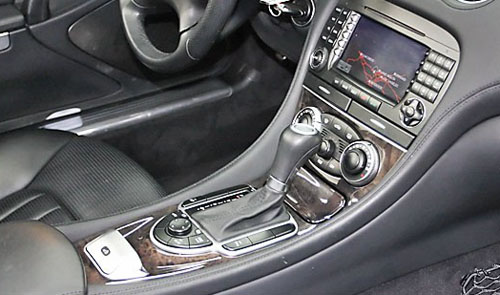

Mercedes SL R230 option 736 black ash trim picture

Model Year Location Trim Part Number
All Left Door  A230 720 07 22 9C84
All Right Door  A230 720 07 22 9C84
MY02-04 Centre console  A230 680 32 39
MY05 onward Centre console  A230 680 02 36

NB, on the 'Edition 50' with option 736 the centre console is A230 680 30 36. I beleive this is because it has 'Edition 50' written on the ash-tray.

NB, SL63 with option 736 centre console is A230 680 18 07

Aluminum Trim. Option code 739. Do not confuse with H70 etched AMG aluminium!!

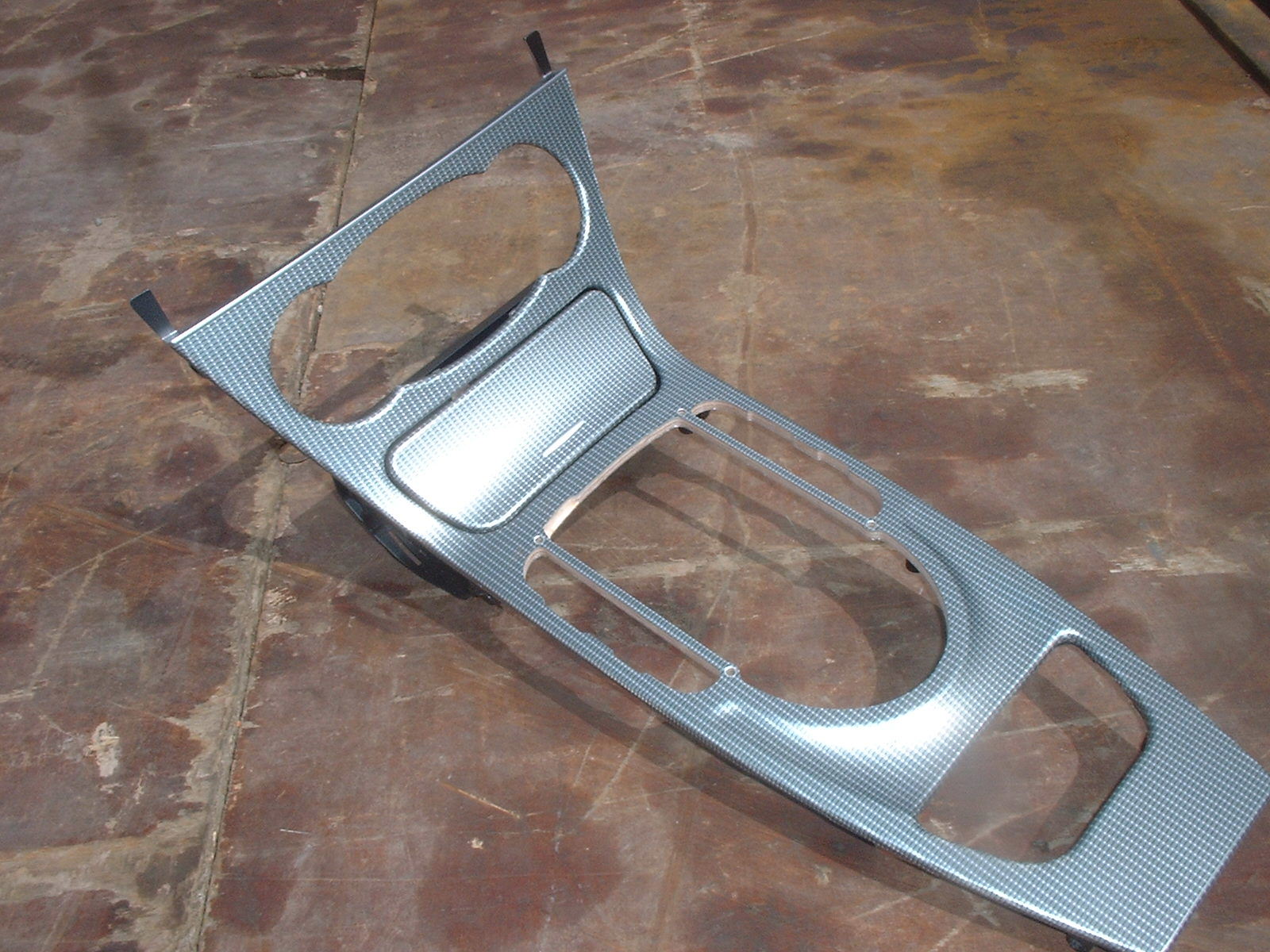

R230 SL aluminium trim option 739

NB. Trim in picture above (and picture courtesy of) A230 680 05 36 available from: EuroMerc.

Model Year Location Trim Part Number
All Left Door  A230 720 03 22 7F10
All Right Door  A230 720 04 22 7F10
MY02-04 Centre console  A230 680 35 39
MY05 onward Centre console  A230 680 05 36 and A230 680 36 36

 NB, MY2005 Left/Right door trims A230 820 19 22 7J94  and A203 820 20 22 7J94. It looks like the trim for this option ccode changed in different model years.

Light Burred Walnut Trim. Option code H12

Model Year Location Trim Part Number
All Left Door  A230 720 41 22 8N75
All Right Door  A230 720 42 22 8N75
MY02-04 Centre console  Not available
MY05 - MY08 Centre console
MY09 onward Center console A230 680 16 36

Note. SL63 with option H12 centre console is A230 680 20 07

Aluminium AMG etched trim. As per original SL55. Standard on SL55 upto somewhere in MY2005. Option code is H70 for other engines / later cars.

Mercedes SL R230 AMG aluminium trim picture

Model Year Location Trim Part Number
All Left Door  A230 720 09 22
All Right Door  A230 720 10 22
MY02-04 Centre console  A230 680 56 39
MY05 onward Centre console  A230 680 16 36



Aluminium Evolution Trim. Option code H72. Used on the Edition 50 special edition vehicle.

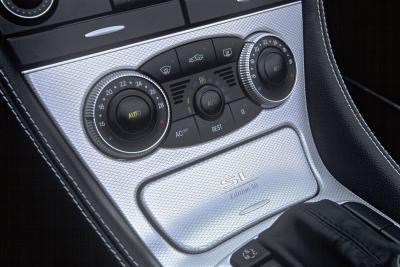

Mercedes R230 SL Edition 50 centre console option H72 picture

Model Year

Location Trim Part Number
All Left Door  A230 720 27 22
All Right Door  A230 720 28 22
MY02-04 Centre console  N/A
MY05 onward Centre console  A230 680 31 36 (Edition 50 version)



Carbon High Gloss Trim. Option code H73 used on the Black Series and others.

Mercedes SL R230 SL65 Black interior carbon trim picture

Model Year Location Trim Part Number
All Left Door  A230 720 33 22
All Right Door  A230 720 34 22
MY05-MY08 Centre console  A230 680 02 07
MY09 onward Centre console  A230 680 01 07

SL65 Black series is A230 680 03 07.  SL63 with option H73 is A230 680 09 07. The picture above is from a SL65 Black Series.

There is also an AMG special edition (option code P97) which gives A230 720 39 22 as the left door trim and A230 720 40 22 as the right door trim

Aluminium 'Prism' Trim. Option code H75

Model Year Location Trim Part Number
All Left Door  A230 720 49 22
All Right Door  A230 720 50 22
MY02-04 Centre console  Not available
MY05 onward Centre console  A230 680 10 07



Carbon Matt Trim. Option code H77

Model Year Location Trim Part Number
All Left Door  A230 720 51 22
All Right Door  A230 720 52 22
MY05 onward Centre console



Designo 'Transparent Matt' Oak Burl. Option code W21

Model Year Location Trim Part Number
All Left Door  A230 720 29 22 8M53
All Right Door  A230 720 30 22 8M52
MY02-04 Centre console  Not available
MY05 onward Centre console  A230 680 34 36 8M53

 Note SL63 with option W21 centre cosole is A230 680 21 07 8M53



Designo Bordeaux Poplar Trim. Option code W63

Model Year Location Trim Part Number
All Left Door  A230 720 15 22 3C58
All Right Door  A230 720 16 22 3C58
MY02-04 Centre console  A230 680 65 89 3C58
MY05 onward Centre console  A230 680 08 36 3C58



Designo 'Transparent' Soft Maple Trim. Option code W64.

Model Year Location Trim Part Number
All Left Door  A230 720 11 22 8K23
All Right Door  A230 720 12 22 8K23
MY02-04 Centre console  A230 680 63 89 8K23
MY05 onward Centre console

 A230 680 06 36 8K23 also

 A230 680 11 36 8K23 ??

 NB. on SL63 with W64, centre console is A230 680 22 07 8K23

Designo Umber Soft Maple Trim. Option code W66

Model Year Location Trim Part Number
All Left Door  A230 720 13 22 8J96
All Right Door  A230 720 14 22 8J96
MY02-04 Centre console  A230 680 64 89 8J96
MY05 onward Centre console  A230 680 07 36 8J96



Designo Piano Black Trim. Option code W69

Model Year Location Trim Part Number
All Left Door  A230 720 37 22 9D37
All Right Door  A230 720 38 22 9D37
MY02-04 Centre console  Not available
MY05 onward Centre console  A230 680 52 36 9D37

 Note, SL63 with W69, centre console is A230 680 23 07 9D37

 Designo Stone 'Viking Green' Trim (Designo Granite in certain countries). Option code W71.

Model Year Location Trim Part Number
All Left Door  A230 680 21 22 6C60
All Right Door  A230 680 22 22 6C60
MY02-04 Centre console  A230 680 71 39 6C60
MY05 onward Centre console  A230 680 10 36 6C60



Designo Stone 'Labrador Blue Pearl' Trim (Designo Granite in certain countries). Option code W72

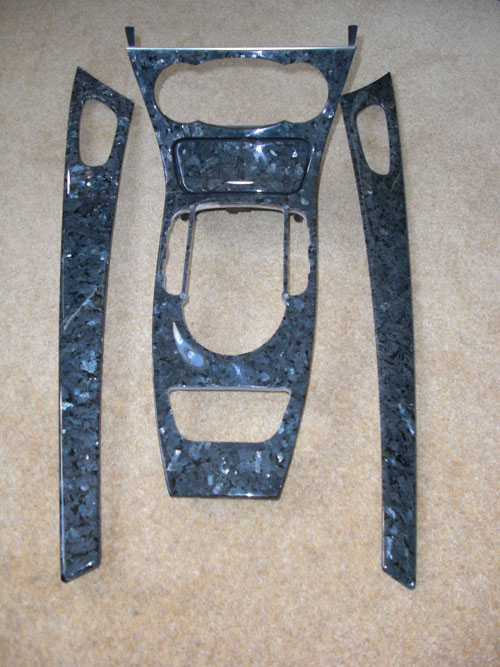

Mercedes SL R230 option W72 Desihno labrador blue trim picture

Model Year Location Trim Part Number
All Left Door  A230 720 17 22 5D83
All Right Door  A230 720 18 22 5D83
MY02-04 Centre console  A230 680 66 39 5D83
MY05 onward Centre console

 A230 680 09 36 5D83 also

 A230 680 14 36 5D83

Note SL63 with W72, centre console is A230 680 67 36 5D83

Designo Stone Star Galaxy Trim. Option code W73

Model Year Location Trim Part Number
All Left Door  A230 720 31 22 9F30
All Right Door  A230 720 32 22 9F30
MY02-04 Centre console  Not available
MY05 onward Centre console  A230 680 35 36 9F30

 Note SL63 with W73 centre console is A230 680 68 36 9F30



Version 1.0 5th February 2010.
